Relay with Blue Pill using STM32CubeIDE

Prerequisites

This project assumes you have already installed STM32CubeIDE. You need to have previously done a basic blink sketch with blue-pill using STM32CubeIDE. I have made a complete video from installing STM32CubeIDE to LED blink program. You can watch it by clicking this link. https://www.youtube.com/watch?v=kXg467nVd_A

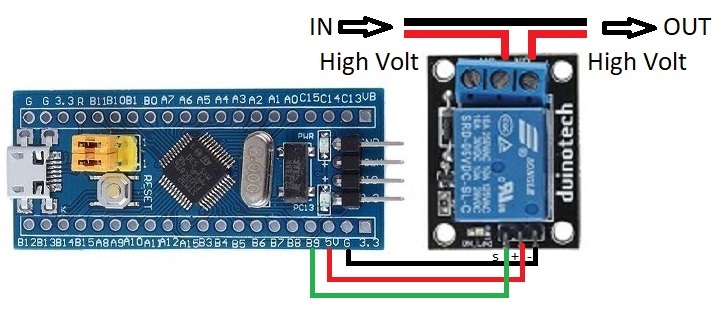

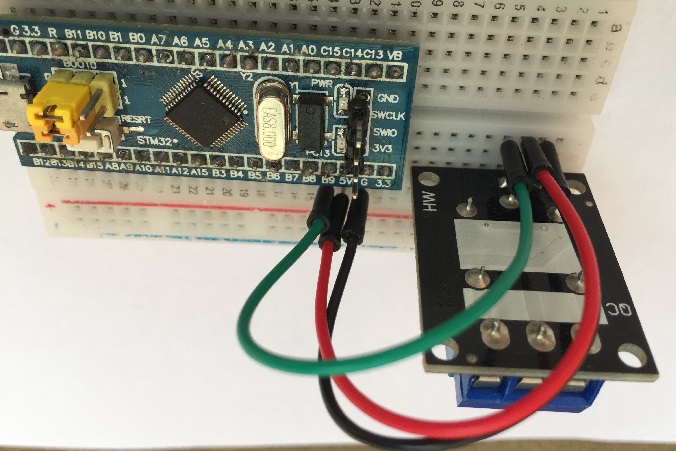

Wiring Diagram

Diagram


STM32CubeIDE Settings

Set PB9 to GPIO_Output

Additional code on top of STM32CubeIDE generated code

  /* USER CODE BEGIN WHILE */
  while (1)
  {
    HAL_GPIO_WritePin(GPIOB, GPIO_PIN_9, 1); //On
    HAL_Delay(1000);
    HAL_GPIO_WritePin(GPIOB, GPIO_PIN_9, 0); //Off
    HAL_Delay(1000);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
